ALEPH P 1.7
CIRCUIT DIAGRAM:
ALEPH P 1.7 USER - User manual download link
ALEPH P 1.7 SERVICE - Service manual download link
POWER SUPPLY FOR ALEPH P 1.7 PREAMPLIFIER:
POWER A17 -
Power supply for the Aleph P 1.7 preamplifier

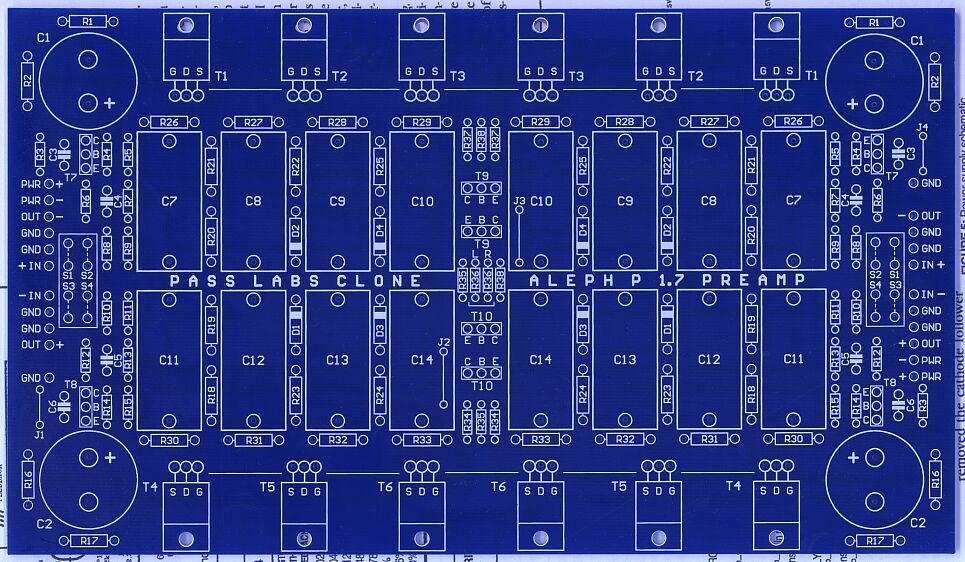

PCB:
PCB is designed as dual mono construction - two completely separate channels on single PCB.
It's made of FR-4 fiberglass material with Cu-50 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with White component overlay.
Printed circuit boards comes with the partlist, stuffing guide and circuit diagram.
PCB size (for two channel construction) is 215 mm x 125 mm ... ( 8,5 in x 5 in )
Professional made printed circuit boards are available :
1 Pcb. ….. Euro 49.00
2 Pcb. ….. Euro 84.00
( Worldwide shipping included )
|
|
|
|
