ALEPH X

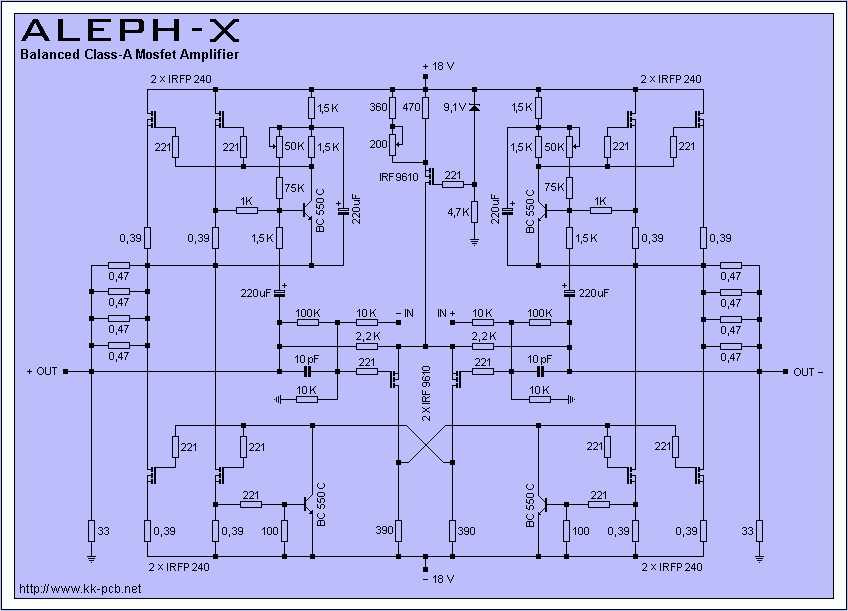

CIRCUIT DIAGRAM:
POWER SUPPLY FOR ALEPH X AMPLIFIER:
POWER ALEPH X -
Power supply for the Aleph X amplifier

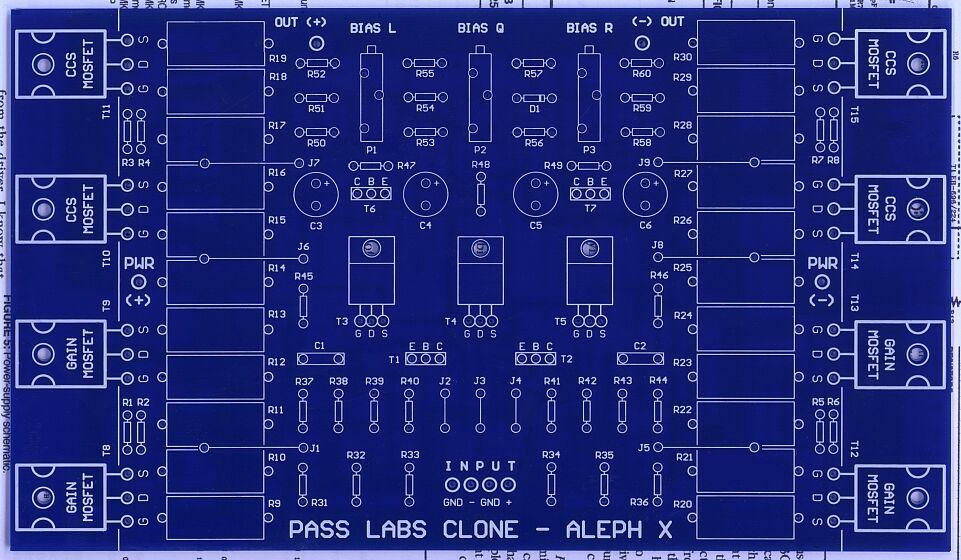

PCB:
PCB's are made of FR-4 fiberglass material with Cu-50 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with white component overlay.
Boards comes with partlist, stuffing guide and circuit diagrams.
PCB size is : 215 mm x 125 mm ….. ( 8.5 in x 5 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. Euro 49.00
2 Pcb. ….. Euro 84.00
( Worldwide shipping included )
|
|
|
|
