BOSOZ - POWER SUPPLY
CIRCUIT DIAGRAM:
BOSOZ - Class-A Balanced Single-Ended Audio Preamplifier Link

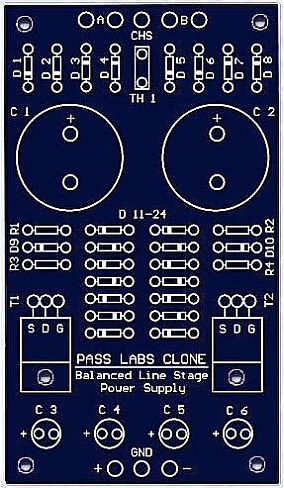

PCB:
PCB is made of FR-4 fiberglass material with Cu-70 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with White component overlay.
Printed circuit boards comes with the partlist, stuffing guide and circuit diagram.
PCB size is : 100 mm x 57 mm ... ( 3,95 in x 2,25 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. Euro 14.00
2 Pcb. ….. Euro 24.00
( Worldwide shipping included )
|
|
|
|
