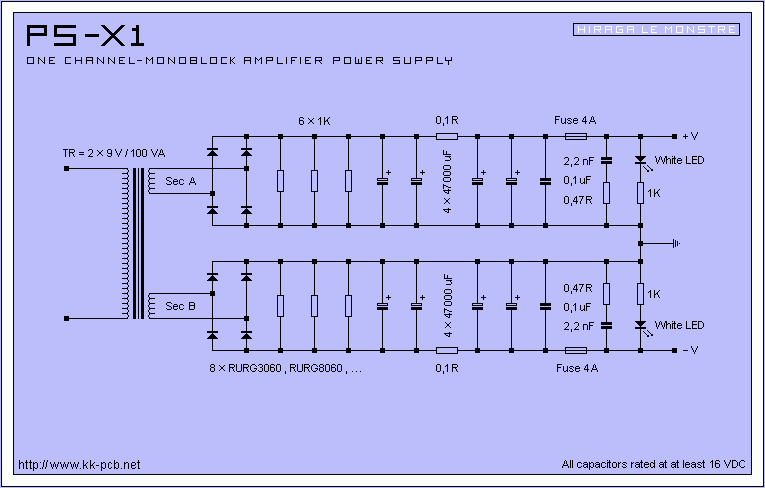

HIRAGA LE MONSTRE - POWER SUPPLY
CIRCUIT DIAGRAM:
LE MONSTRE - Hiraga Class-A Audio Amplifier Link
PCB:
PCB is made of FR-4 fiberglass material with Cu-70 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with White component overlay.
Printed circuit boards comes with the partlist, stuffing guide and circuit diagram.
PCB size is : 293 mm x 97 mm ... ( 11.56 in x 3.82 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. 49.00 Euro
2 Pcb. ….. 84.00 Euro
( Worldwide shipping included )
|
|
|
|
