XCCS-BOSOZ

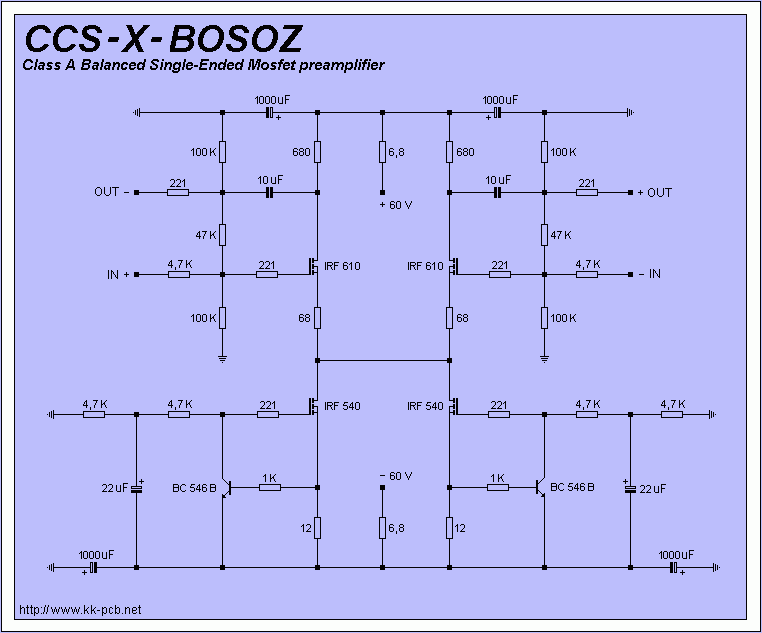

CIRCUIT DIAGRAM:
POWER SUPPLY FOR XCCS-BOSOZ PREAMPLIFIER:
POWER XCCS -
Power supply for the XCCS-BOSOZ preamplifier

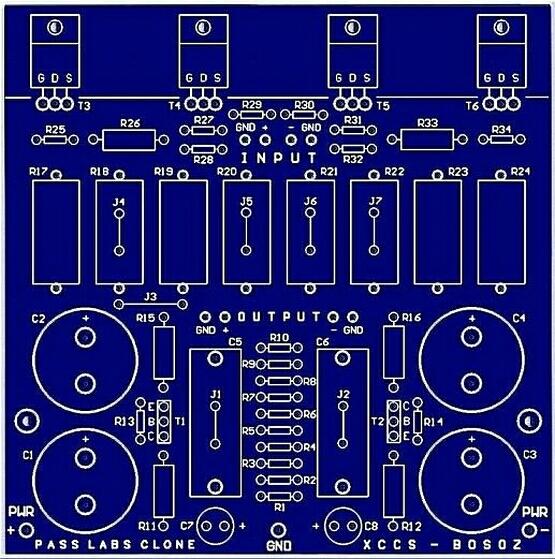

PCB:
PCB is made of FR-4 fiberglass material with Cu-70 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with White component overlay.
Printed circuit boards comes with the partlist, stuffing guide and circuit diagram.
PCB size is : 117 mm x 117 mm ... ( 4,62 in x 4,62 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. Euro 23.00
2 Pcb. ….. Euro 39.00
( Worldwide shipping included )
|
|
|
|
